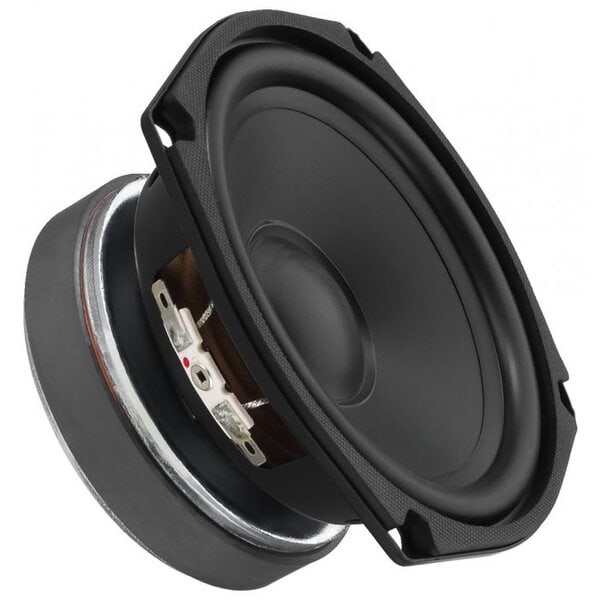

Monacor SPH-135/AD NP
3.700,00 ден
Low-impedance | 1 |
Impedance (Z) | 8 Ω |
Frequency range | f3-6,000 Hz |
Resonant frequency (fs) | 39 Hz |
Power rating (RMS) | 40 W |
Peak music power output (MAX) | 60 W |
SPL | 89 dB/W/m |
Suspension compl. (Cms) | 2.14 mm/N |
Moving mass (Mms) | 7.8 g |
Mech. Q factor (Qms) | 3.40 |
Electr. Q factor (Qes) | 0.42 |
Total Q factor (Qts) | 0.37 |
Equivalent volume (Vas) | 26 l |
DC resistance (Re) | 5.5 Ω |
Force factor (BxL) | 5.00 Tm |
Voice coil induct. (Le) | 0.47 mH |
Voice coil diameter | Ø 25.5 mm |
Voice coil former | Kapton |
Linear excursion (XMAX) | ± 1.75 mm |
Eff. cone area (Sd) | 95 cm2 |
Magnet weight | 380 g |
Magnet diameter | Ø 100 mm |
Mounting cutout | Ø 121 mm |
Mounting depth | 64 mm |
Dimensions | 135 x 135 x 70 mm |
Width | 135 mm |
Height | 135 mm |
Depth | 70 mm |
Colour | black |
Admiss. ambient temp. | 0-40 °C |
Weight | 1.09 kg |
Packing unit | 1 |
Type of speaker | 5.5″ |
Packing dimensions (W x H x L) | 0.135 x 0.085 x 0.135 m |
Gross weight | 1.16 kg |
Net weight | 1.09 kg |
