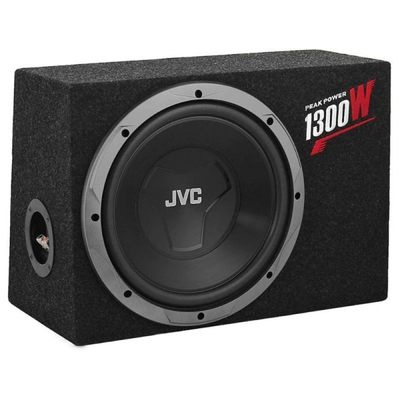

JVC CS-BW120

Subwoofer

Cone Size

30cm / 12 inch

Cone Type

Injection PP Cone

Frame

Painted SPCC Frame

Surround

High-Density Foam

Gasket

Super Heat-Resistant ABS

Magnet

Ferrite Magnet

Terminals

Push 8AWG Ready

Frequency Response

37 – 2,500Hz

Power Handling Capacity (Peak power)

1300W

Power Handling Capacity (RMS power)

150W

Impedance (ohms)

4 ohms

Sound Pressure Level

87dB

Weight

Mass

2.4kg (5.3 lbs)

Magnet Mass

605g (21.4 oz)

Mounting Depth

128mm (5-1/16′)

Speaker Box

Type

Bass Reflex Ported

Width (with Terminal)

486mm (19-1/8″)

Height

342mm (13-15/32″)

Depth (with Gasket)

269mm (10-19/32″)

Weight (with Woofer unit)

8.5kg (18.8lbs)
