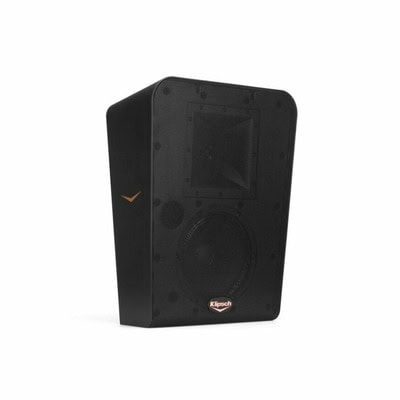

Klipsch KPT-8000M Surround Speaker
A high-value, highly-aesthetic surround speaker perfect for smaller size cinemas where cost effectiveness is a major objective, the KPT-8000M is designed for flexible side-wall or ceiling placements, making it an excellent choice for today’s advanced, multichannel digital sound formats
The emergence of today’s multichannel digital surround sound formats has created a need for extended versatility in cinema surround speakers. The Klipsch KPT-8000M Cinema Surround speaker was created to meet that need with a perfect solution for smaller size cinemas where cost effectiveness is a major objective. Designed for flexible side-wall or ceiling placements, the Klipsch-exclusive Tractrix® Horn technology provides critical low-distortion clarity with high-efficiency for maximum
output per watt. The added ellipses or “mumps” to the horn enhance full horn frequency coverage across its 90° x 90° wide dispersion area.
The solid, molded cabinet design provides an attractive, contemporary look that blends perfectly with today’s high-style venues with pre-drilled holes to fit industry-standard mounting brackets for fast, easy and secure installation. Mounted flush on a vertical surface (wall) produces an 8° downward firing angle while the included insert adds an additional 7° of angle for a total of 15°. Klipsch SB-6 and SB-7 mounting brackets are recommended for side-wall mounting while an approved third-party bracket can easily be utilized for ceiling mounting.
Whether used in a standard surround format, or called upon to create the jaw-dropping effects of today’s advanced digital surround formats, the Klipsch KPT-8000M provides the ultimate in surround sound reproduction, putting movie audiences right in the middle of the action.
FREQUENCY RESPONSE: | 75 Hz – 20 kHz (–10 dB @ 48 Hz) |
POWER HANDLING: | AES: 100 watts (21V), IEC: 125 watts (23.5V) |
MAXIMUM SPL: | 116 dB Continuous, 122 dB Peak |
SENSITIVITY: | 97.5 dB @ 2.83V / 1M, 95 dB @ 1W / 1M |
COVERAGE: | Horizontal: 90° +/– 20° 2 kHz – 20 kHz, Vertical: 90° +20°/–40° 2 kHz – 20 kHz |
DIRECTIVITY INDEX (DI): | 7.5 dB +/- 1 dB 2 kHz – 20 kHz |
DIRECTIVITY FACTOR (Q): | 5.6 2 kHz – 20 kHz |
NOMINAL IMPEDANCE: | 8 ohms, (minimum 4.4 ohms @ 217 Hz) |
CROSSOVER FREQUENCY: | 1.9 kHz 12 dB/Octave LF 18 dB/Octave HF |

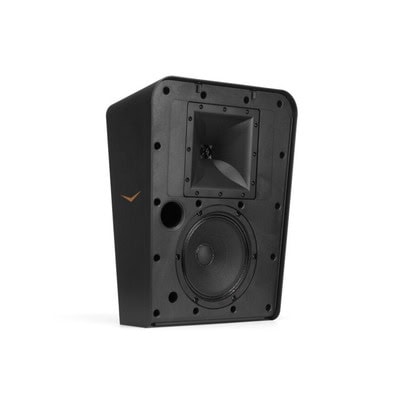

COMPONENTS: | One K-8-ST 8″ woofer, One K-103-TI-KP 1” titanium compression driver on a K-802 horn |

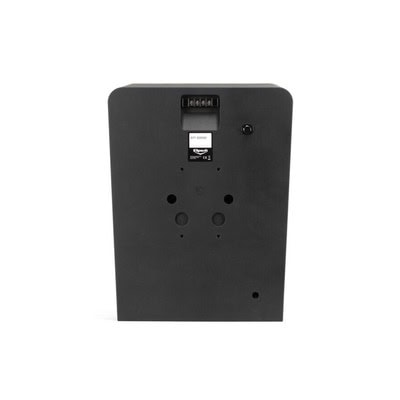

INPUT CONNECTION: | Four point barrier strip |
BRACKET SCREW PATTERN: | 4 screw: 2.75” (6.9cm) x 5” (12.7cm) |
INCLUDED SCREWS: | (4) 1.125” (2.86cm) 1/4, Bottom: 13” (33cm) |
ENCLOSURE MATERIAL: | ABS + 10% glass |
GRILLE: | Power-coated steel |
HEIGHT: | 18.7” (47.5cm) |
WIDTH: | Top: 14.7” (37.3cm), Bottom: 13” (33cm) |
DEPTH | Top: 7.2” (18.3cm), Bottom: 4.7” (11.9cm) |
WEIGHT | 15.77 lbs (7.15kg) |
FINISHES | Black |
