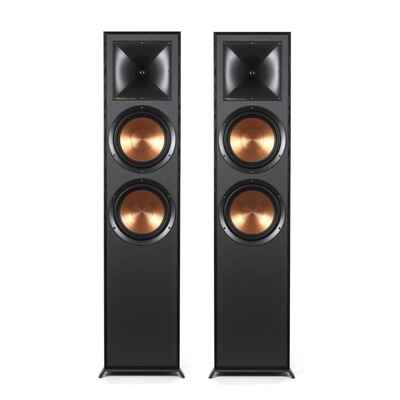

Klipsch R-820F

The R-820F floorstanding speaker takes your movies and music to another level by delivering incredible sound from our signature Klipsch horn-loaded tweeter and a spun-copper IMG woofer.

Scratch-Resistant, Textured Wood Grain Vinyl

Stylish aesthetic with absolute durability that results in a seamless integration into any décor.

Standing at only 43″ tall, yet able to produce deep bass extension.

Injection Molded Graphite (IMG) woofer cones are exceptionally light while being extremely rigid – providing remarkable low frequency response, with minimal cone breakup and distortion. When paired with the Tractrix Horn-Loaded LTS Tweeter, it provides speaker efficiency highest in its class.Spun Copper Img Woofers

High Quality Cabinet Design

The R-820F floostanding speaker’s reinforced MDF construction reduces cabinet vibration for less audible coloration and improved sonic accuracy – giving you the ultimate listening experience that’s built to last.

The addition of elevation speakers reflects sound from the ceiling to put sound anywhere in your room it needs to be, truly making you feel like you’re in the middle of the action.

Features:

1″ Aluminum LTS tweeter
90×90 Square Tractrix Horn
Twin 8″ Spun-Copper IMG Woofers
Bass-Reflex via Rear-Firing Tractrix® ports
Strong, Flexible Removable Magnetic Grille

Rear Tractrix Port

The rear Tractrix port is perfectly matched to the cabinet and woofers, creating ideal airflow with minimal distortion or turbulence even at the lowest frequencies.

Linear Travel Suspension Tweeter

Klipsch exclusive Linear Travel Suspension (LTS) aluminum tweeter minimizes distortion for enhanced, detailed performances. Using Kapton, an extremely light and rigid material, in the tweeter suspension provides high efficiency and improve resolution and detail. LTS tweeters are a hallmark of Klipsch speakers, making them some of the best speakers in the world.

Tractrix Horn Technology

Klipsch exclusive 90×90 Tractrix horn technology ensures that the R-820F high frequency energy is aimed at the listener and reduces artificial reverb or filtering caused by indirect sound bouncing off of walls. Using this proprietary focused technology gives you the clarity, dynamics, and detail from your movies and music.

Exposed fasteners, angled feet, low profile magnetic grilles and a scratch-resistant, textured wood grain vinyl give the R-820F floorstanding speaker a polished, modern appearance.Sleek Design

-Frequency Response: 35Hz – 21kHz +/- 3dB
-Sensitivity: 97 dB @ 2.83V/1M
-Power Handling: 150W/600W
-Nominal Impedance: 8 ohms Compatible
-Crossover Frequency: 1,700 Hz
-High Frequency Driver: 1” Aluminum LTS tweeter mated to a 90 x 90 square Tractrix Horn
-Low Frequency Driver: Dual 8” spun-copper IMG woofers
-Enclosure Material: MDF
-Enclosure Type: Bass-Reflex via rear-firing Tractrix ports
-Inputs: Single Gold Plated Binding Posts
-Height Inches (MM): 43” (1093 mm)
-Width Inches (Mm): 10.9” (277 mm)
-Depth Inches (MM): 17.5” (443 mm)
